For sale HERACLES H140
Price w/o VAT
Further information
The Heracles loader is controlled with an ergonomic joystick that makes driving and working effortless.
The joystick has:
Thumb-operated direction change (forward/reverse)

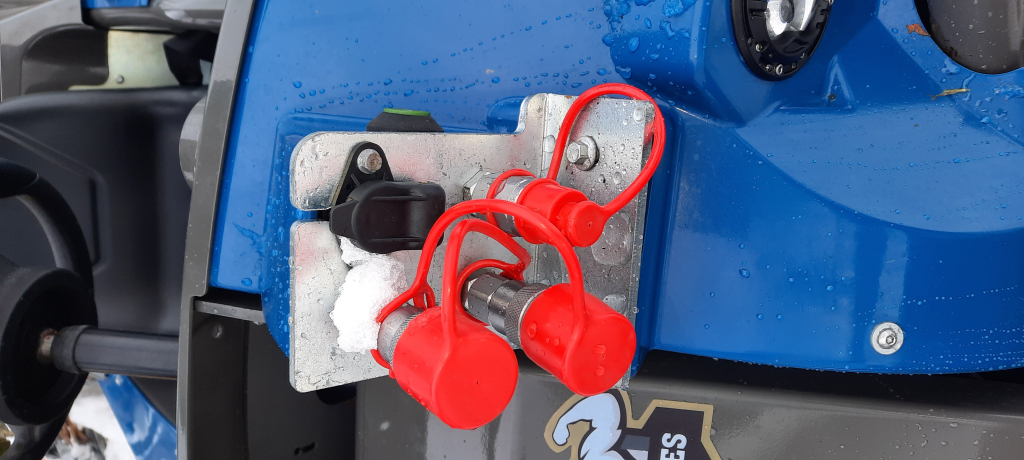

Control of auxiliary hydraulics
Connection of continuous flow, e.g. to a brush.
At the rear of the joystick:
Drive release
Operation of one hydraulic block
Engine speed is conveniently adjusted:
With a roller control next to the steering wheel
Hydraulic flow is adjusted:
With its own roller control on the other side of the steering wheel
This allows the operator to: adjust engine speed and flow to suit each job.
Technical data H140
Engine model LONCIN LC2V80FD
Fuel Petrol
Cylinders 2
Displacement cm³ 764
Emission standards EU Stage V&EPA Tier 4 Final
Maximum engine power kW 20 @ 3600 rpm
Maximum engine torque Nm 52 @ 2800 rpm
Cooling system Air
Operating voltage V 12
Battery Ah 45
Operating weight kg 700
Tipper load, max kg 500
Lifting capacity, max kg 350
Cabin Canopy
Travel speed km/h 0~20
Steering angle ° 45
Turning radius in/out mm 800/2000
Standard tires 20x10.00-10
Fuel tank capacity l 15
Hydraulic oil tank capacity l 23
Working hydraulics flow l/min 40
Hydraulic working pressure bar 200
Transmission type Hydrostatic
CE
